Grad rocket accuracy

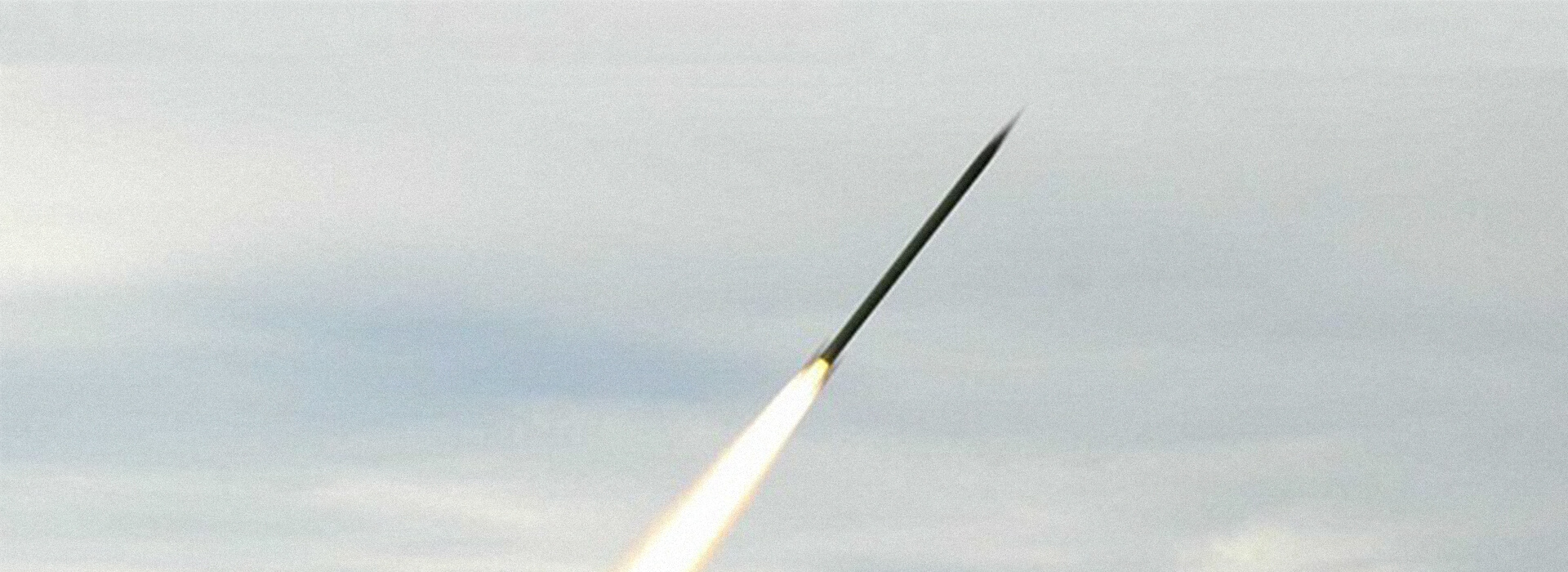

2 November, 2023Exploring the world of 122 mm GRAD rocket
The 122 mm rocket stands as an impressive example of precision and destructive capability. Today, we delve into the specifications of this powerful weapon, examining its specifications such as rocket range, blast radius, and the precision-enhancing features that redefine its role on the modern battlefield.
A Powerful Trio for Maximum Impact
At its core, the 122 mm rocket is a complex group of components designed for maximum power. A warhead with a fuse, propelled by a solid propellant rocket motor and a wing section for aerodynamic stability and control, forms the lethal trio that defines its prowess.
Blast-Fragmentation at its Finest
The warhead, predominantly blast-fragmentation, possesses a massive radius of destruction spanning 45 meters. This destructive force is twofold: a rain of naturally formed or pre-fragmented fragments, and the secondary shockwave effect with a reach of up to 1/3 of the destruction radius. Diverse fuzes play a pivotal role in activating the warhead, offering options ranging from instant effect to delayed and proximity activation.
Propelling to New Heights
A rocket is only as good as its propulsion system, and the 122 mm rocket doesn't disappoint. It comes in two interesting variants. The basic, with a maximum range of 21 km, has evolved into a modernized version extending its reach to an impressive 41 km.
What sets the modernized version apart is its revolutionary new type of rocket propellant. This innovation aims not only to extend the rocket's range but also to enhance specific impulse without major changes to the metal components (forward closure, chamber, and igniter). The result? A deadlier, faster, and farther-reaching rocket.
Rocket Dispersion
When we speak about rocket dispersion, we have to consider several factors. Misalignment in thrust force, which causes higher dispersion at longer ranges, demands rigorous production control for modernized Grad rockets (to minimize thrust force misalignment). The high accuracy is achieved by clever design and strict quality control, with a Circular Error Probability (CEP) of less than 1% at the maximal range.
Aerodynamic Evolution
The wing section ensures the static and dynamic stability of the rocket during flight. It consists of four aerodynamic surfaces positioned along the rocket's rear. While basic variants boast rectangular wings, the modernized rockets, designed for increased velocity, showcase trapezoidal wings for enhanced aerodynamics. It's an evolution in form and function, adapting to the rocket's need for speed and precision.
The Next Level of Precision
Enhancing the accuracy and precision of artillery rockets has become an art in itself. Integrating a trajectory correction fuse and subsystems like wings or impulse rocket motors in the front part of the 122mm rocket propels precision to new heights. This not only reduces the number of missiles required but also minimizes collateral damage, paving the way for a more strategic application of firepower.
