An Expendable Engine with One of the Most Compact Axial Compressors
Having stemmed from EDePro’s long experience of engineering high-performing, cost-effective and reliable solutions, the TJE-200 is a simple, yet modern engine, comparable with all expendable TJEs produced today.

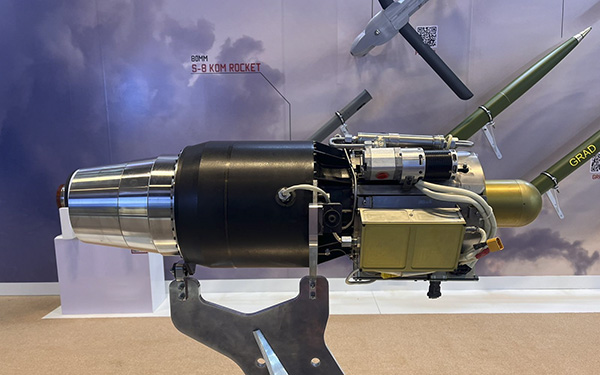

Displayed for the first time at the IDEX 21 in Abu Dhabi, the TJE-200 is ranked among first-rate engines, and it can be on a par with the engines of only few selected global manufacturers.
This engine can be used in a wide variety of target drones, cruise missiles, unmanned aerial vehicles and other unmanned systems, and it can be modified in accordance with the client's requirements.

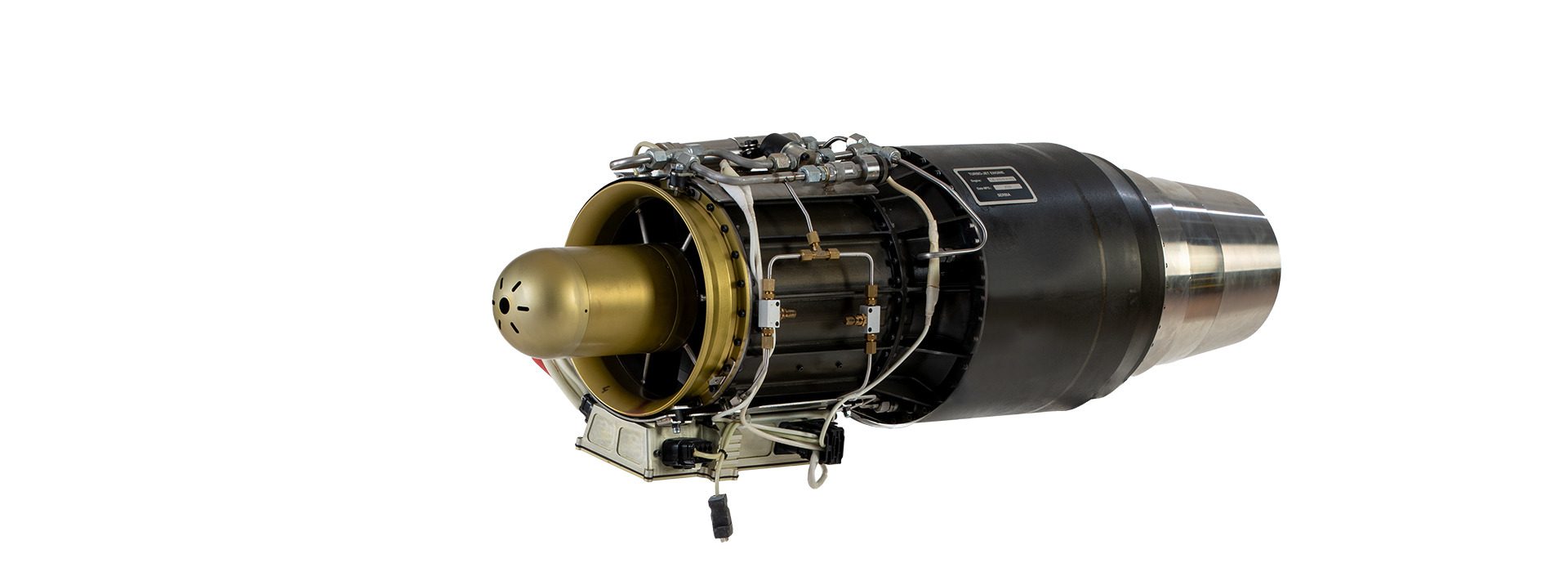

The TJE-200’s design is lightweight and compact, consisting of a three-stage axial compressor, an annular combustion chamber and a single-stage axial turbine. With a generator power of 1 kW, the engine can reach a maximum thrust of 185 daN and a speed of 39,450 rpm (but, for a short time, it can run at 42,000 rpm). It can also function with a 5% smaller nozzle, which increases the thrust by 7%.
Moreover, due to its ground and in-flight starting, its flight start that entails windmilling and a pyro-starter, and its low fuel consumption, it is deemed a top-tier engine in its category.

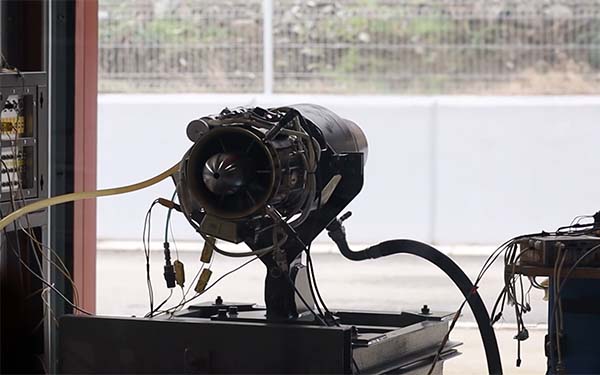

From in-house development, production to testing – we provide the very best in gas turbines, to meet our client’s specific needs.
